Kubernetes: k8s 运维篇-k8s容器日志收集

k8s 运维篇-k8s容器日志收集

说明

K8s集群需要收集哪些日志？

  • 系统和 k8s 组件日志
    • /var/log/messages
    • apiserver,contorllor manager
  • 业务应用程序日志
    • 云原生-控制台日志
    • 非云原生-容器内日志文件

收集日志常用的技术栈

  • 传统架构
    • ELK 技术栈 Elasticsearch+Logstash+Kibana

logstash 缺点：java 语言，占用资源、语法复杂

  • Kubernetes
    • EFK 技术栈 Elasticsearch+Fluentd+Kibana
    • Filebeat 占用资源小，sidecar 形式注入容器，收集容器内日志
    • Loki 新贵

fluentd 优点：k8s 中使用 fluentd 代替 Logstash，配置简单，收集控制台输出日志。
Loki：不依赖 EFK，可直接在 grafana 查询日志。

使用 EFK 收集控制台日志

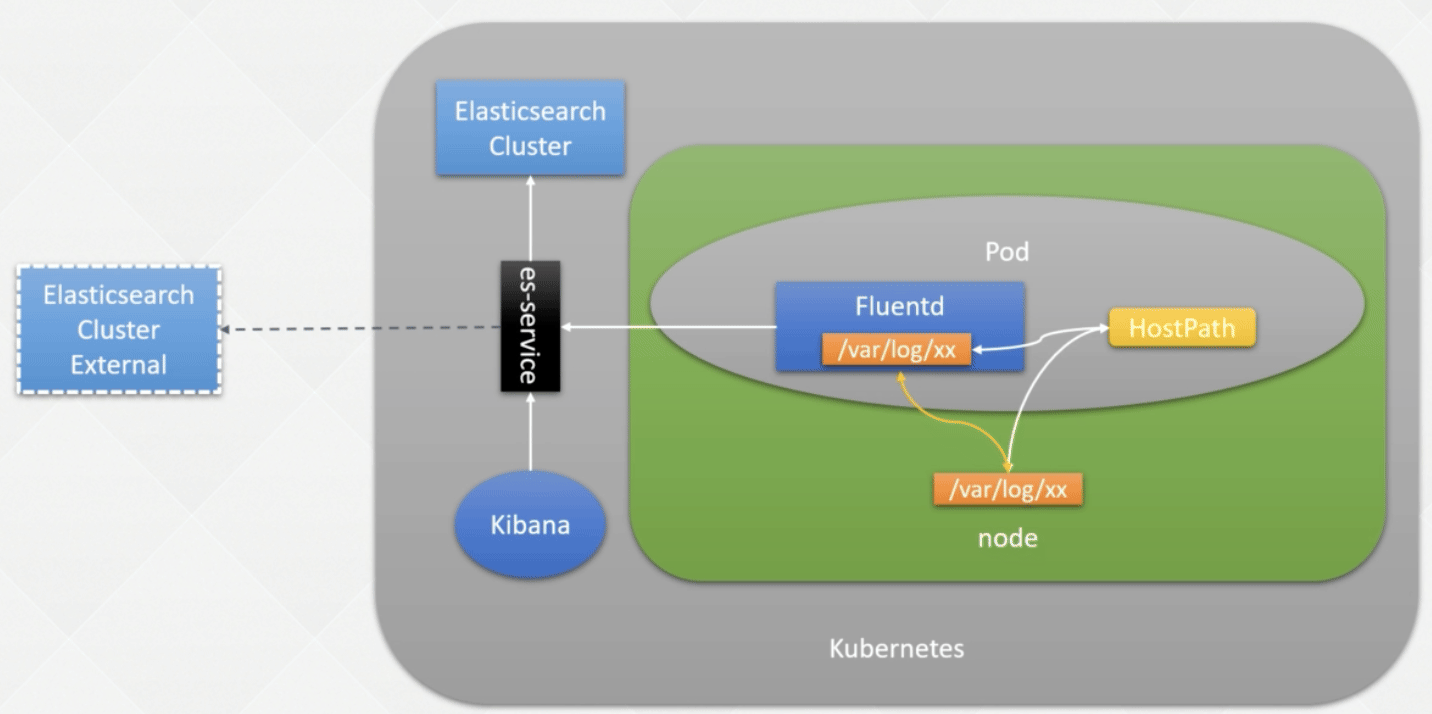

ES+Fluentd+Kibana架构解析


部署EFK Stack收集K8s日志

https://github.com/kubernetes/kubernetes/tree/release-1.23/cluster/addons/fluentd-elasticsearch

收集宿主机日志 /var/log

下载需要部署的文件

git clone https://github.com/dotbalo/k8s.git
cd k8s/efk-7.10.2/

创建 EFK 所用的命令空间

kubectl create -f create-logging-namespace.yaml

创建 ES 集群

kubectl create -f es-service.yaml
kubectl create -f es-statefulset.yaml

创建 kibana

kubectl create -f kibana-deployment.yaml
kubectl create -f kibana-service.yaml

  # 如果访问有问题，kibana-deployment.yaml 关掉里面的访问模式proxy
  # 注释以下2行（kibana-deployment.yaml ）
  #- name: SERVER_BASEPATH
  # value: /api/v1/namespaces/kube-system/services/kibana-logging/proxy

由于在 k8s 中，我们可能并不需要对所有机器采集日志，所以可以更改 fluentd 的部署文件，添加节点绑定：

kubectl create -f fluentd-es-configmap.yaml -f fluentd-es-ds.yaml

参考：https://www.cnblogs.com/hsyw/p/14397700.html

Kibana 使用

使用 Filebeat 收集自定义文件日志

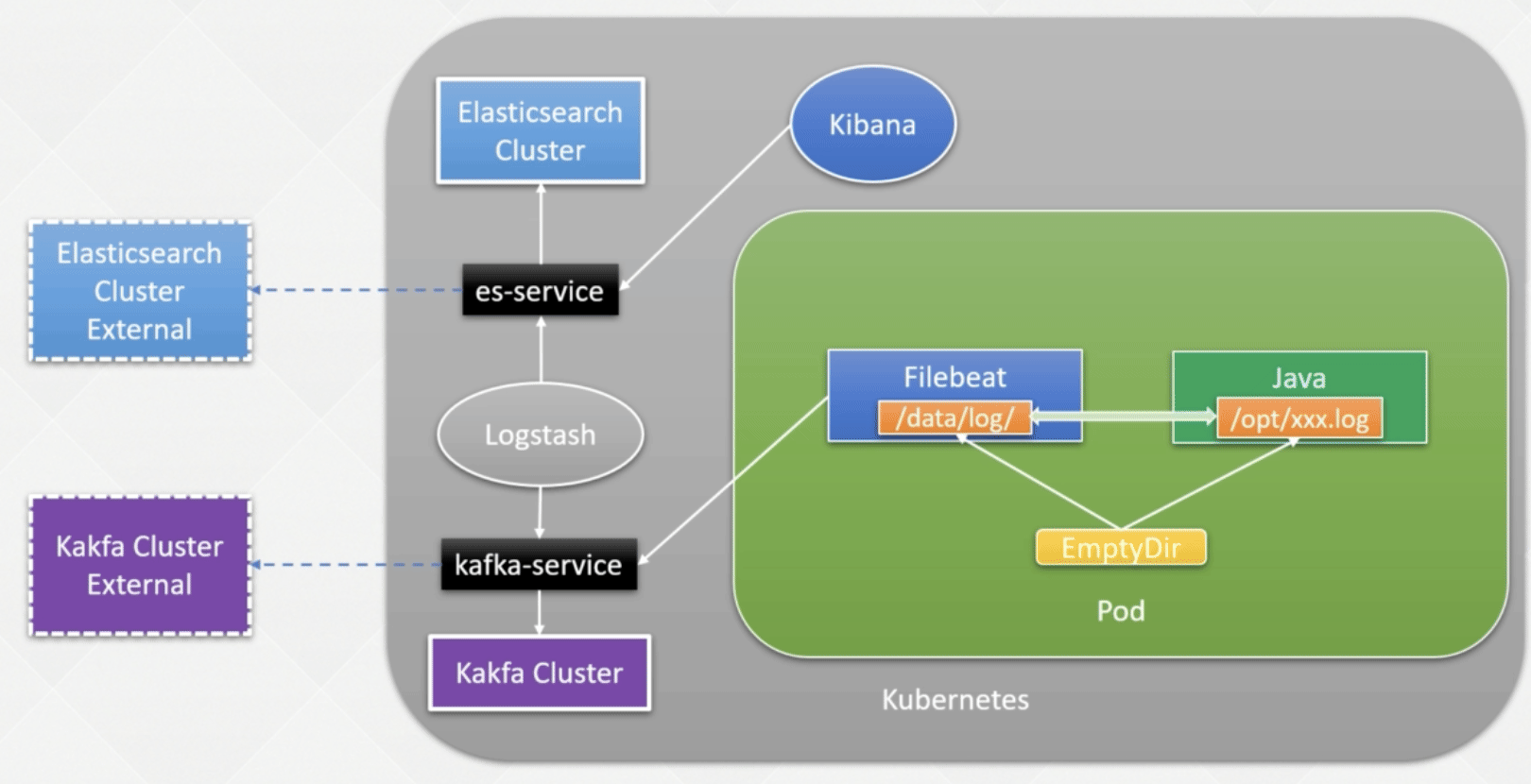

Filebeat+Kafka+Logstash+ES架构解析


Pod 中有 2 个容器

  • 业务容器 日志未输出到控制台，输出到指定文件
  • 日志容器 volume 使用 EmptyDir

创建 Kafka 和 Logstash

首先需要部署 Kafka 和 logstash 至 k8s 集群。如果企业内已经有比较成熟的技术栈，可以无需部署，直接将 filebeat 的输出指向外部 kafka 集群即可：
参考： https://github.com/dotbalo/k8s/tree/master/fklek/7.x

cd filebeat
helm install zookeeper zookeeper/ -n logging
helm install kafka kafka/ -n logging

待 pod 都正常后，创建 logstash 服务：

kubectl create -f logstash-cm.yaml -f logstash-service.yaml -f logstash.yaml
logstash-cm.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  name: logstash-configmap
data:
  logstash.yml: |
    http.host: "0.0.0.0"
    path.config: /usr/share/logstash/pipeline
  logstash.conf: |
    # all input will come from filebeat, no local logs
    input {
      kafka {
              enable_auto_commit => true
              auto_commit_interval_ms => "1000"
              bootstrap_servers => "kafka:9092"
              topics => ["test-filebeat"]
              codec => json
          }
    }
    output {
       stdout{ codec=>rubydebug}
       if [fields][pod_namespace] =~ "public-service" {
           elasticsearch {
             hosts => ["elasticsearch-logging:9200"]
             index => "%{[fields][pod_namespace]}-s-%{+YYYY.MM.dd}"
          }
       } else {
          elasticsearch {
             hosts => ["elasticsearch-logging:9200"]
             index => "no-index-%{+YYYY.MM.dd}"
          }
       }
    }
logstash-service.yaml
kind: Service
apiVersion: v1
metadata:
  name: logstash-service
spec:
  selector:
    app: logstash
  ports:
  - protocol: TCP
    port: 5044
    targetPort: 5044
  type: ClusterIP
logstash-deploy.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: logstash-deployment
spec:
  selector:
    matchLabels:
      app: logstash
  replicas: 1
  template:
    metadata:
      labels:
        app: logstash
    spec:
      containers:
      - name: logstash
        image: logstash:7.4.2
        ports:
        - containerPort: 5044
        volumeMounts:
          - name: config-volume
            mountPath: /usr/share/logstash/config
          - name: logstash-pipeline-volume
            mountPath: /usr/share/logstash/pipeline
      volumes:
      - name: config-volume
        configMap:
          name: logstash-configmap
          items:
            - key: logstash.yml
              path: logstash.yml
      - name: logstash-pipeline-volume
        configMap:
          name: logstash-configmap
          items:
            - key: logstash.conf
              path: logstash.conf

需要注意 logstash-cm.yaml 文件中的一些配置：

  • input: 数据来源，示例配置的是 kafka
  • input.kakfa.topics: kafka 的 topic，需要和 filebeat 输出的 topic 一致
  • output: 数据输出至哪里，示例输出至 ES 集群

使用Filebeat采集容器内日志文件

filebeat-cm.yaml

cd /root/install-some-apps/efk
mkdir filebeat && cd filebeat

vim filebeat-cm.yaml

apiVersion: v1
kind: ConfigMap
metadata:
  name: filebeatconf
data:
  filebeat.yml: |-
    filebeat.inputs:
    - input_type: log
      paths:
        - /data/log/*/*.log
      tail_files: true
      fields:
        pod_name: '${podName}'
        pod_ip: '${podIp}'
        pod_deploy_name: '${podDeployName}'
        pod_namespace: '${podNamespace}'
      tags: [test-filebeat]
    output.kafka:
      hosts: ["kafka:9092"]
      topic: "test-filebeat"
      codec.json:
        pretty: false
      keep_alive: 30s

kubectl create -f filebeat-cm.yaml -n public-service

接下来创建一个模拟程序

kubectl create -f app-filebeat.yaml -nlogging

该程序会一直在/opt/date.log 文件输出当前日期，配置如下

command:
  - sh
  - -c
  - while true; do date >> /opt/date.log; sleep 2;  done

/opt 目录数据共享

app-filebeat.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: app
  labels:
    app: app
    env: release
spec:
  selector:
    matchLabels:
      app: app
  replicas: 1
  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxUnavailable: 0
      maxSurge: 1
  # minReadySeconds: 30
  template:
    metadata:
      labels:
        app: app
    spec:
      containers:
        - name: filebeat
          image: registry.cn-beijing.aliyuncs.com/dotbalo/filebeat:7.10.2
          resources:
            requests:
              memory: "100Mi"
              cpu: "10m"
            limits:
              cpu: "200m"
              memory: "300Mi"
          imagePullPolicy: IfNotPresent
          env:
            - name: podIp
              valueFrom:
                fieldRef:
                  apiVersion: v1
                  fieldPath: status.podIP
            - name: podName
              valueFrom:
                fieldRef:
                  apiVersion: v1
                  fieldPath: metadata.name
            - name: podNamespace
              valueFrom:
                fieldRef:
                  apiVersion: v1
                  fieldPath: metadata.namespace
            - name: podDeployName
              value: app
            - name: TZ
              value: "Asia/Shanghai"
          securityContext:
            runAsUser: 0
          volumeMounts:
            - name: logpath
              mountPath: /data/log/app/
            - name: filebeatconf
              mountPath: /usr/share/filebeat/filebeat.yml
              subPath: usr/share/filebeat/filebeat.yml
        - name: app
          image: registry.cn-beijing.aliyuncs.com/dotbalo/alpine:3.6
          imagePullPolicy: IfNotPresent
          volumeMounts:
            - name: logpath
              mountPath: /opt/
          env:
            - name: TZ
              value: "Asia/Shanghai"
            - name: LANG
              value: C.UTF-8
            - name: LC_ALL
              value: C.UTF-8
          command:
            - sh
            - -c
            - while true; do date >> /opt/date.log; sleep 2;  done
      volumes:
        - name: logpath
          emptyDir: {}
        - name: filebeatconf
          configMap:
            name: filebeatconf
            items:
              - key: filebeat.yml
                path: usr/share/filebeat/filebeat.yml
es & kibana

#+end_src
es 和 kibana 用的上面安装的
#+end_src

实现Pod名称和命名空间检索日志

登录 kibana ，添加 filebeat 的索引即可查看日志。点击菜单栏–> Stack Management

Loki

Loki架构解析

使用Loki收集K8s日志

https://grafana.com/docs/loki/latest/installation/helm/install-scalable/

Loki 提供了 helm 的安装方式，可以直接下载包进行安装。

helm repo add grafana https://grafana.github.io/helm-charts
helm repo update

创建 loki namespace

kubectl create ns loki

创建 loki stack:

helm upgrade --install loki grafana/loki --set grafana.enalbed=true --set grafana.service.type=NodePort -n loki

#  没有 grafana 设置为 true

访问grafana

查看grafana 密码（账号 admin）：

kubectl get secret --namespace loki loki-grafana -o jsonpath="{.data.admin-password}" | base64 -d; echo

grfana 页面中点击左边栏 Explore 找到 loki 来查询

Loki语法入门

语法 prometheus 语法相似

支持 pipline，如过滤 avg 字段

{namespace="kube-system", pod=~"calico.*"} |~ "avg"

格式化后过滤，如过滤 avg 字段，同时其中 longest 大于 18ms 的行

{namespace="kube-system", pod=~"calico.*"} |~ "avg" |logfmt| longest > 18ms

样例

filebeat+logstash 示例1

从 kafka 收集数据输出到 ES

logstash-configmap.yaml

apiVersion: v1
data:
  jvm.options: |
    #-Xms16g
    #-Xmx16g
    -XX:+UseG1GC
    -XX:MaxGCPauseMillis=50
    -Djava.awt.headless=true
    -Dfile.encoding=UTF-8
    -Djruby.compile.invokedynamic=true
    -Djruby.jit.threshold=0
    -Djruby.regexp.interruptible=true
    -XX:+HeapDumpOnOutOfMemoryError
    -Djava.security.egd=file:/dev/urandom
    -Dlog4j2.isThreadContextMapInheritable=true
  logstash.conf: |
    input {
      kafka {
        bootstrap_servers => "kafka.public-middleware:9092"
        #client_id => "taskcenter-prd-new-${POD_NAME}"
        client_id => "taskcenter-prd-client"
        #group_id => "taskcenter-prd"
        group_id => "growth-prd"
        topics_pattern => "taskcenter-prd.*" # kafka topics 正则索引匹配
        consumer_threads => 6
        fetch_max_bytes => "204857600"
        fetch_max_wait_ms => "1000"
        decorate_events => basic
        auto_offset_reset => "latest"
        codec => "json"
        max_poll_records => "5000"
      }
      kafka {
        bootstrap_servers => "kafka.public-middleware:9092"
        #client_id => "messagcenter-prd-new-${POD_NAME}"
        client_id => "messagcenter-prd-client"
        #group_id => "messagecenter-prd"
        group_id => "growth-prd"
        topics_pattern => "messagecenter-prd.*" # kafka topics 正则索引匹配
        consumer_threads => 6
        fetch_max_wait_ms => "1000"
        decorate_events => basic
        auto_offset_reset => "latest"
        codec => "json"
        max_poll_records => "5000"
      }
      kafka {
        bootstrap_servers => "kafka.public-middleware:9092"
        #client_id => "clevertap-prd-new-${POD_NAME}"
        client_id => "clevertap-prd-client"
        #group_id => "clevertap-prd"
        group_id => "growth-prd"
        topics_pattern => "clevertap-prd.*" # kafka topics 正则索引匹配
        consumer_threads => 6
        fetch_max_bytes => "204857600"
        fetch_max_wait_ms => "1000"
        decorate_events => basic
        auto_offset_reset => "latest"
        codec => "json"
        max_poll_records => "5000"
      }
      kafka {
        bootstrap_servers => "kafka.public-middleware:9092"
        #client_id => "rummy-sc-prd-new-${POD_NAME}"
        client_id => "rummy-sc-prd-client"
        #group_id => "rummy-sc-prd"
        group_id => "growth-prd"
        topics_pattern => "rummy-sc-prd.*" # kafka topics 正则索引匹配
        consumer_threads => 6
        fetch_max_wait_ms => "1000"
        decorate_events => basic
        auto_offset_reset => "latest"
        codec => "json"
        max_poll_records => "5000"
      }
    }

    filter {
      if [kafka_topic] =~ "clevertap-prd" {
                  grok {
                      # patterns_dir => ["/etc/logstash/conf.d"]
                      match => { "message" => "(?<mydate>\d+-\d+-\d+\s\d+\:\d+\:\d+\.\d{3})?(\s\[.+\]) %{LOGLEVEL:loglevel} (?<line>\[.*\]) (?<traceid>\[.*\]) %{GREEDYDATA:class}" }
                  }
                  date {
                      match => ["mydate", "yyyy-MM-dd HH:mm:ss.SSS"]
                      target => "@timestamp"
                      timezone => "Asia/Kolkata"
                  }
      }
      if [kafka_topic] =~ "taskcenter-prd" {
                  grok {
                      # patterns_dir => ["/etc/logstash/conf.d"]
                      match => { "message" => "(?<mydate>\d+-\d+-\d+\s\d+\:\d+\:\d+\.\d{3})?(\s\[.+\]) %{LOGLEVEL:loglevel} (?<line>\[.*\]) (?<traceid>\[.*\]) %{GREEDYDATA:class}" }
                  }
                  date {
                      match => ["mydate", "yyyy-MM-dd HH:mm:ss.SSS"]
                      target => "@timestamp"
                      timezone => "Asia/Kolkata"
                  }
      }
      if [kafka_topic] =~ "messagecenter-prd" {
                  grok {
                      # patterns_dir => ["/etc/logstash/conf.d"]
                      match => { "message" => "(?<mydate>\d+-\d+-\d+\s\d+\:\d+\:\d+\.\d{3})?(\s\[.+\]) %{LOGLEVEL:loglevel} (?<line>\[.*\]) (?<traceid>\[.*\]) %{GREEDYDATA:class}" }
                  }
                  date {
                      match => ["mydate", "yyyy-MM-dd HH:mm:ss.SSS"]
                      target => "@timestamp"
                      timezone => "Asia/Kolkata"
                  }
                  #mutate {
                  #        split => {"class" => ":"}
                  #        add_field => { "error_class" => "%{[class][0]}" }
                  #}
      }
      if [kafka_topic] =~ "rummy-sc-prd" {
                    grok {
                       match => { "message" => "(?<mydate>\d+-\d+-\d+\s\d+\:\d+\:\d+\.\d{3})?(\s\[.+\]) %{LOGLEVEL:loglevel} (?<line>\[.*\]) (?<traceid>\[.*\]) (?<logv>(-\s\S+\d|-\s\S+)) (param: AppLogReqParam\(userId=(?<userid>\d+( |)),\scontent=(?<content_json>(\[.*\]|\{.*\})),\stype=(?<apptype>.*)\)|)%{GREEDYDATA:class}" }
                    }

                    date {
                       match => ["mydate", "yyyy-MM-dd HH:mm:ss.SSS"]
                       target => "@timestamp"
                       timezone => "Asia/Kolkata"
                          }
      }
      mutate {
        remove_field  => ["agent","ecs","host"]
      }
    }


    output {
        #if "-dev" in [kafka_topic] {
        #if [kafka_topic] =~ "-dev(|\s+)" {
            elasticsearch {
                  #hosts => ["elasticsearch-log-master.public-middleware:9200"]
                  hosts => ["elasticsearch-growth.public-middleware:9200"]
                  #index => "%{kafka_topic}-%{service}-%{+YYYY.MM.dd}"
                  index => "%{[@metadata][kafka][topic]}-%{service}-%{+YYYY.MM.dd}"
                }
        #}
        #if [kafka_topic] =~ "-prd(|\s+)" {
        #    elasticsearch {
        #          hosts => ["elasticsearch-log-master.public-middleware:9200"]
        #          index => "%{kafka_topic}-%{+YYYY.MM.dd}"
        #        }
        #}
    }
  logstash.yml: |
    http.host: "0.0.0.0"
    path.config: /usr/share/logstash/pipeline
    pipeline.workers: 20
    pipeline.batch.size: 50240
    pipeline.batch.delay: 10
    pipeline.ecs_compatibility: disabled
    config.reload.automatic: true
    config.reload.interval: 300s
kind: ConfigMap
metadata:
  name: logstash-growth-prd
  namespace: logstash

logstash-deployment.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: logstash-growth-prd
  name: logstash-growth-prd
  namespace: logstash
spec:
  replicas: 2
  strategy:
    rollingUpdate:
      maxSurge: 25%
      maxUnavailable: 25%
    type: RollingUpdate
  selector:
    matchLabels:
      app: logstash-growth-prd
  template:
    metadata:
      labels:
        app: logstash-growth-prd
    spec:
      nodeSelector:
        type: pfgc-ops-prod-logstash
        #type: pfgc-ops-prod-infra
      affinity:
        podAntiAffinity:
          preferredDuringSchedulingIgnoredDuringExecution:
          - podAffinityTerm:
              labelSelector:
                matchLabels:
                  app: logstash-growth-prd
              namespaces:
              - logstash
              topologyKey: kubernetes.io/hostname
            weight: 1
      containers:
      - env:
        - name: ES_HOSTS
          value: es:9200
        #- name: MY_NODE_NAME
        #  valueFrom:
        #    fieldRef:
        #      apiVersion: v1
        #      fieldPath: spec.nodeName
        - name: POD_NAME
          valueFrom:
            fieldRef:
              fieldPath: metadata.name
        - name: TZ
          value: Asia/Calcutta
        image: docker.elastic.co/logstash/logstash:7.17.8
        imagePullPolicy: IfNotPresent
        name: logstash-growth-prd
        ports:
        - containerPort: 5044
          protocol: TCP
        #resources:
        #  requests:
        #    memory: "10Gi"
        #    cpu: "1"
        #  limits:
        #    memory: "30Gi"
        #    cpu: "16"
        securityContext:
          privileged: true
        terminationMessagePath: /dev/termination-log
        terminationMessagePolicy: File
        volumeMounts:
        - mountPath: /usr/share/logstash/config/jvm.options
          name: conf
          subPath: jvm.options
        - mountPath: /usr/share/logstash/config/logstash.yml
          name: conf
          subPath: logstash.yml
        - mountPath: /usr/share/logstash/pipeline/logstash.conf
          name: conf
          subPath: logstash.conf
        - mountPath: /etc/localtime
          name: time
      restartPolicy: Always
      volumes:
      - configMap:
          defaultMode: 420
          name: logstash-growth-prd
        name: conf
      - hostPath:
          path: /usr/share/zoneinfo/Asia/Calcutta
          type: ""
        name: time
filebeat
$ cat config/app-config.yaml
apiVersion: v1
data:
  TZ: Asia/Calcutta
  APP_NAMESPACE: taskcenter-prd
  APP_ENV: prod
  APP_JVM_CONFIG: |-
    -Dfile.encoding=utf-8
    -server
    -XX:+UseG1GC
    -XX:+ExitOnOutOfMemoryError
    -XX:InitialRAMPercentage=75.0
    -XX:MinRAMPercentage=75.0
    -XX:MaxRAMPercentage=75.0
    -XX:+HeapDumpOnOutOfMemoryError
    -XX:HeapDumpPath=/opt/logs/
  PreStop.sh: |-
    #! /bin/bash
    sleep 50
    curl  --connect-timeout 5 --max-time 5 -s -i -H "Content-Type: application/json" -X POST  http://localhost:8099/actuator/shutdown
    sleep 60
  PreStop_task.sh: |-
    #! /bin/bash
    sleep 50
    curl --connect-timeout 5 --max-time 5 -s -i "http://localhost:8080/xxljob/shutdown"
    sleep 20
    curl --connect-timeout 5 --max-time 5 -s -i -H "Content-Type: application/json" -X POST  http://localhost:8099/actuator/shutdown
    sleep 40
  app-config.yml: |-
    - type: log
      scan_frequency: 10s
      paths:
        - '/data/logs/${POD_NAME}/*/*.log'
      fields:
        service: ${SERVICE_NAME}
        kafka_topic: ${KAFKA_TOPIC_NAME}
      #  LOG_TYPE: 'dc'
      #  POD_IP: '${POD_IP}'
      #  POD_NAME: '${POD_NAME}'
      #  NODE_NAME: '${NODE_NAME}'
      #  POD_NAMESPACE: '${POD_NAMESPACE}'
      # json.overwrite_keys: true
      # json.keys_under_root: true
      force_close_files: true
      fields_under_root: true
      ignore_older: 24h  # 忽略1天前的日志
      clean_inactive: 25h
      close_inactive: 20m
      exclude_lines: ['DEBUG']
      exclude_files: ['.gz$', 'gc.log']
      tags: ['taskcenter']
      multiline.pattern: '^([0-9]{4}-[0-9]{2}-[0-9]{2}[[:space:]][0-9]{2}:[0-9]{2}:[0-9]{2}\.[0-9]{3}[[:space:]]\[)'
      multiline.negate: true
      multiline.match: after
  filebeat.yml: |-
    filebeat.config.inputs:
      path: ${path.config}/conf.d/app-config.yml
      enable: true
      reload.enabled: true
      reload.period: 10s
      max_bytes: 20480  # 单条日志限制20kb
    # ============================== Filebeat modules ==============================
    filebeat.config.modules:
      path: ${path.config}/modules.d/*.yml
      reload.enabled: false
      reload.period: 10s
    # =================================== Filebeat output ===================================
    output.kafka:
      enabled: true
      hosts: ["pfgc-ops-prod-kafka.gamepind.com:9094"]
      topic: '%{[kafka_topic]}'
      partition.round_robin:
        reachable_only: false
      required_acks: 1
      compression: gzip
      max_message_bytes: 1000000
    # =================================== Queue ===================================
    max_procs: 1
    queue.mem:
      events: 2048
      flush.min_events: 1024
      flush.timeout: 2s
kind: ConfigMap
metadata:
  name: app-config
  namespace: taskcenter

日志容器

$ cat task-center-web/deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: task-center-web
    department: taskcenter
    env: prod
  name: task-center-web
  namespace: taskcenter
spec:
  replicas: 4
  selector:
    matchLabels:
      app: task-center-web
      department: taskcenter
      env: prod
  strategy:
    rollingUpdate:
      maxSurge: 1
      maxUnavailable: 1
    type: RollingUpdate
  template:
    metadata:
      annotations:
        prometheus.io/path: /actuator/prometheus
        prometheus.io/port: "10081"
        prometheus.io/scrape: "true"
      labels:
        app: task-center-web
        department: taskcenter
        env: prod
    spec:
      terminationGracePeriodSeconds: 90
      nodeSelector:
        type: pfgc-paltform-growth-arm
      topologySpreadConstraints:
      - maxSkew: 2
        topologyKey: eks.amazonaws.com/capacityType
        whenUnsatisfiable: ScheduleAnyway
        labelSelector:
          matchLabels:
            app: task-center-web
      affinity:
        podAntiAffinity:
          preferredDuringSchedulingIgnoredDuringExecution:
          - podAffinityTerm:
              labelSelector:
                matchLabels:
                  app: task-center-web
              namespaces:
              - taskcenter
              topologyKey: kubernetes.io/hostname
            weight: 1
        #nodeAffinity:
        #  preferredDuringSchedulingIgnoredDuringExecution:
        #  - weight: 100
        #    preference:
        #      matchExpressions:
        #      - key: eks.amazonaws.com/capacityType
        #        operator: In
        #        values:
        #        - SPOT
      initContainers:
      - image: pfgc-ops-harbor.xxx.com/devops/skywalking-agent:vv8.7.0
        name: skywalking-sidecar
        imagePullPolicy: Always
        command: ['sh']
        args: ['-c', 'mkdir -p /skywalking && /bin/cp -rf /opt/skywalking/agent /skywalking']
        volumeMounts:
        - mountPath: /skywalking
          name: skywalking
      containers:
      - args:
        - -javaagent:/opt/skywalking/agent/skywalking-agent.jar
        - -server
        - -XX:+HeapDumpOnOutOfMemoryError
        - -XX:HeapDumpPath=logs/
        - -Xms6g
        - -Xmx6g
        - -XX:G1HeapRegionSize=16m
        - -XX:G1ReservePercent=25
        - -XX:InitiatingHeapOccupancyPercent=30
        - -XX:SoftRefLRUPolicyMSPerMB=0
        - -verbose:gc
        - -Xloggc:logs/$(POD_NAME)/gc.log
        - -XX:+PrintGCDetails
        - -XX:+PrintGCDateStamps
        - -XX:+PrintGCApplicationStoppedTime
        - -XX:+PrintAdaptiveSizePolicy
        - -XX:+UseGCLogFileRotation
        - -XX:NumberOfGCLogFiles=5
        - -XX:GCLogFileSize=30m
        - -XX:-OmitStackTraceInFastThrow
        - -XX:+AlwaysPreTouch
        - -XX:MaxDirectMemorySize=512m
        - -XX:-UseLargePages
        - -XX:LargePageSizeInBytes=128m
        - -XX:+UseFastAccessorMethods
        - -XX:-UseBiasedLocking
        - -Dfile.encoding=UTF-8
        - -Dspring.profiles.active=k8sprod
        - -XX:+DisableExplicitGC
        - -jar
        - /opt/task-center-web/task-center-web.jar
        command:
        - java
        env:
        - name: POD_IP
          valueFrom:
            fieldRef:
              apiVersion: v1
              fieldPath: status.podIP
        - name: POD_NAME
          valueFrom:
            fieldRef:
              apiVersion: v1
              fieldPath: metadata.name
        - name: SW_AGENT_NAMESPACE
          valueFrom:
            configMapKeyRef:
              name: app-config
              key: APP_NAMESPACE
        - name: SW_AGENT_NAME
          value: "taskcenter-prd-task-center-web"
        - name: SW_LOGGING_DIR
          value: "/opt/skywalking/logs"
        - name: SW_AGENT_COLLECTOR_BACKEND_SERVICES
          value: "ops-public-skywalking:11800"
        image: pfgc-ops-harbor.xxx.com/taskcenter/task-center-web:dev_20221226_141335
        imagePullPolicy: IfNotPresent
        lifecycle:
          preStop:
            exec:
              command:
              - /bin/bash
              - -c
              - curl -X PUT "http://nacos-0.nacos.base.svc.cluster.local:8848/nacos/v1/ns/instance?serviceName=task-center-web&groupName=FENCE_GROUP_PROD&ip=${POD_IP}&port=18081&namespaceId=f043157a-7d73-4f9c-99c0-d90de4db8163&enabled=false"
                && sleep 60
        startupProbe:
          httpGet:
            path: /taskcenter/health/check
            port: 18081
            scheme: HTTP
          periodSeconds: 10
          failureThreshold: 50
          successThreshold: 1
          timeoutSeconds: 2
        livenessProbe:
          failureThreshold: 5
          httpGet:
            path: /taskcenter/health/check
            port: 18081
            scheme: HTTP
          initialDelaySeconds: 20
          periodSeconds: 30
          successThreshold: 1
          timeoutSeconds: 3
        name: task-center-web
        ports:
        - containerPort: 18081
          protocol: TCP
        readinessProbe:
          failureThreshold: 5
          httpGet:
            path: /taskcenter/health/check
            port: 18081
            scheme: HTTP
          initialDelaySeconds: 20
          periodSeconds: 30
          successThreshold: 1
          timeoutSeconds: 3
        resources:
          limits:
            cpu: "2.5"
            memory: 7.5Gi
          requests:
            cpu: "1"
            memory: 7.5Gi
        volumeMounts:
        - mountPath: /opt/task-center-web/logs
          name: logs
        - mountPath: /etc/localtime
          name: time
        - mountPath: /opt/skywalking
          name: skywalking
      - env:
        - name: TZ
          valueFrom:
            configMapKeyRef:
              name: app-config
              key: TZ
        - name: NODE_NAME
          valueFrom:
            fieldRef:
              apiVersion: v1
              fieldPath: spec.nodeName
        - name: POD_NAMESPACE
          valueFrom:
            fieldRef:
              apiVersion: v1
              fieldPath: metadata.namespace
        - name: POD_NAME
          valueFrom:
            fieldRef:
              apiVersion: v1
              fieldPath: metadata.name
        - name: POD_IP
          valueFrom:
            fieldRef:
              apiVersion: v1
              fieldPath: status.podIP
        - name: KAFKA_TOPIC_NAME
          valueFrom:
            configMapKeyRef:
              name: app-config
              key: APP_NAMESPACE
        - name: SERVICE_NAME
          value: "task-center-web"
        image: docker.elastic.co/beats/filebeat:8.5.2
        imagePullPolicy: IfNotPresent
        name: filebeat
        resources:
          limits:
            cpu: 100m
            memory: 200Mi
          requests:
            cpu: 10m
            memory: 10Mi
        volumeMounts:
        - mountPath: /usr/share/filebeat/filebeat.yml
          name: filebeat-config
          subPath: filebeat.yml
        - mountPath: /usr/share/filebeat/conf.d
          name: filebeat-config
        - mountPath: /data/logs
          name: logs
      imagePullSecrets:
      - name: docker-pull
      securityContext:
        runAsUser: 0
      volumes:
      - configMap:
          defaultMode: 511
          name: app-config
        name: app-config
      - configMap:
          defaultMode: 420
          items:
          - key: filebeat.yml
            path: filebeat.yml
          - key: app-config.yml
            path: app-config.yml
          name: app-config
        name: filebeat-config
      - hostPath:
          path: /usr/share/zoneinfo/Asia/Calcutta
          type: ""
        name: time
      - emptyDir: {}
        name: logs
      - emptyDir: {}
        name: skywalking
